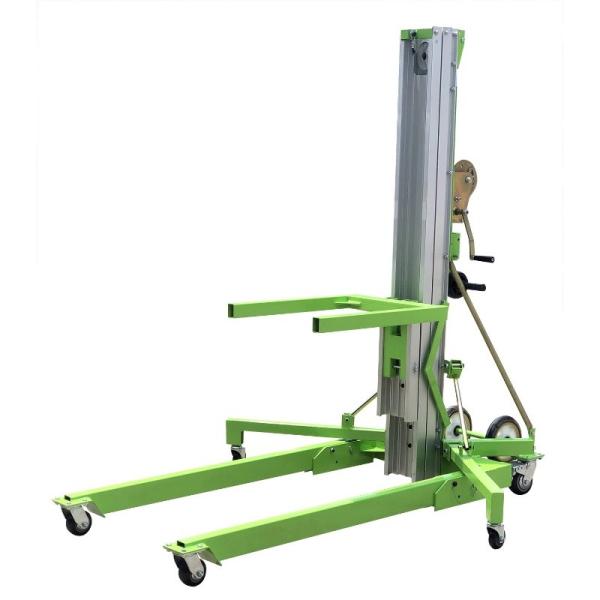

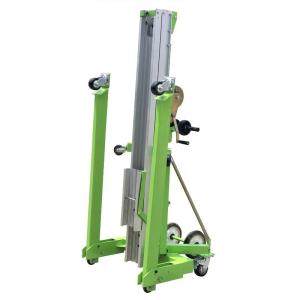

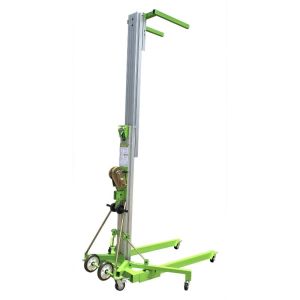

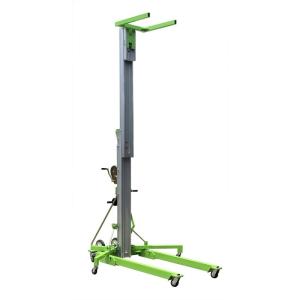

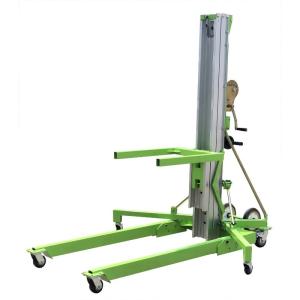

    Portable Manual Material Lift with Manual One Speed Winch

    Ask Lasest Price
    Brand Name : CHENLIFT
    Model Number : SLA
    Price : Negotiable
    Delivery Time : 30day after down payment
    Payment Terms : T/T L/C
    Supply Ability : 200 sets per month
    Certification : CE
    • Product Details
    • Company Profile

    Portable Manual Material Lift with Manual One Speed Winch

    Manual Alloy Material Aluminum Lift

    This material lift is a (no power) manually operated machine, it is designed into compact, lightweight structure, so it can be easily through standard doorway. The Material lift platform can be widely used in the construction, industry, storage, exhibition, stage construction, the advertising industry, central- air conditioning.

    Advantages


    Easy to operate
    The material lift can be operated by one person for lifting and moving the goods.
    Multiple optional parts
    The material lift can be equipped with multiple forks and the lighthouse device (used for emergency lighting and other uses)

    Lowest stowed height

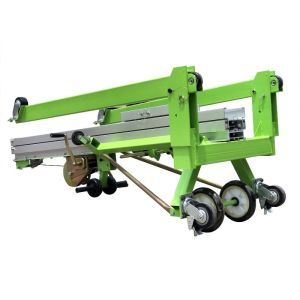

    The stowed height of the materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.

    Specification

    ModelSLA-5SLA-10SLA-15SLA-20SLA-25
    Standard forks-down1.49 m2.97 m4.46 m5.94 m7.42 m
    Standard forks-up2 m3.49 m4.98 m6.46 m7.94 m
    Flat forks1.49 m2.97 m4.46 m------
    Load platform
    Forks down
    1.49 m2.97 m4.46 m5.94 m7.42 m
    Load platform
    Forks up
    2 m3.49 m4.98 m6.46 m7.94 m
    Stowed Size
    (H* L*W)
    1.99* 0.74* 0.8 m1.99* 0.74* 0.8 m1.99* 0.74* 0.8 m1.99* 0.74* 0.8 m1.99* 0.79* 0.8 m
    Working Length1.51 m1.51 m1.88 m2.08 m2.08 m
    Ground clearance-center0.05 m0.05 m0.05 m0.05 m0.05 m
    Load Height Minimum0.15 m0.15 m0.15 m0.15 m0.15 m
    Load Capacity
    18 in (46cm) load center454 kg454 kg363 kg363 kg295 kg
    24 in (61cm) load center454 kg454 kg363 kg272 kg204 kg
    42 in (107cm) load center159 kg181 kg227 kg159 kg113 kg
    Weight
    Weight98 kg118 kg151 kg184 kg204 kg


    Features
    Manual Alloy Material Aluminum Lift


    Product Details

    Manual Alloy Material Aluminum Lift

    Manual Alloy Material Aluminum Lift

    Operation

    Manual Alloy Material Aluminum Lift
