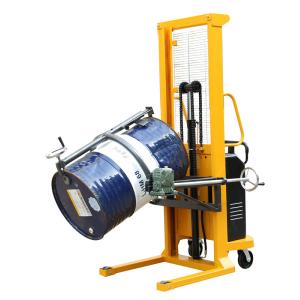

1.6m Lifting Height Gripper Type Electric Drum Lift(Manual Rotating) with 500Kg Load

Quick Detail:

Description:

The Electric Drum Lift has simple and light-weight structure; the Gripper type structure design is quite suitable for loading steel and plastic drums. The operation of the drum lift is simple and labor-saving. It is used for the transporting, loading and unloading liquid like dyes, paintings, adhesive, oil and so on. In general, the Electric Drum Lift can provide you with safe and easy transportation of drums.

Main Features:

• Use high-quality hydraulic pump unit which can provide strong driving force and long-lasting and maintenance-free battery.

• The gantry is made up of special-rolled industrial-manufactured C-type steel which is strong and safe.

• High-quality oil cylinder with fast lifting speed and the lifting height can reach 1600mm. The drum lift can manual tilt 180°.

• With electronic balance which has functions like resting to zero, taring and weighting. The accuracy of the electronic balance can reach ±3‰.

Major Parameters

• Loading Capacity 500kg

• Net Weight240Kg

• Wheel DimensionΦ80*55,Φ150*50

• Inner/Outer Width of Front Leg(mm) 640/800

• Outline Dimension(mm)1400*950*2060

• Turning Radius (mm)1750

• Pump Unit Power (Kw/h)1.5

• Battery Parameter (Ah/V)120/12

• Lifting Height (mm)1600

• Lifting Speed (mm/s)
